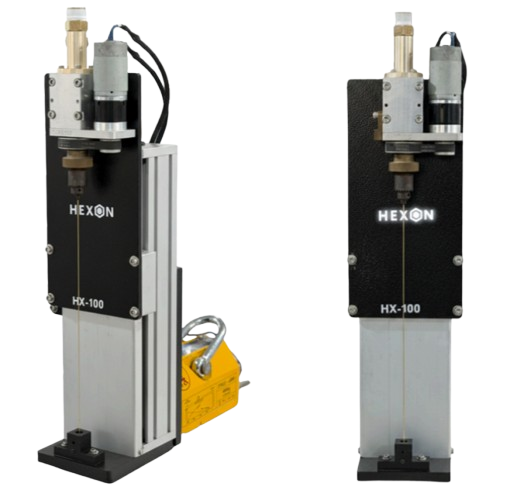

Portable Deep Drill Electric Discharge Machine
Request Technical Demo
Download Specifications
Introduction
Portable Deep Drill EDM enables fast, precise deep-hole drilling on hard and conductive
materials. Compact and lightweight, it works directly on large parts without
disassembly—ideal for on-site repair, tool removal, and precision machining in
industries like aerospace and molds.
Fabrication of deep micro holes: Micro, Mini, Macro.
Specification
| Specification | Details |
|---|---|
| Hole Size Range | 0.5 – 1.0 mm (Micro) (Optional) 1.0 – 2.0 mm (Mini) (Standard) 2.0 – 3.0 mm (Macro) (Optional) |
| Z-Axis Travel | 100 mm |
| XY Travel | Manual 30 mm travel on both X & Y axes (Upgradeable as per user requirement) |
| Working Fluid | Distilled Water |
| Electrolyte Flow | Flow through Brass Tubes |
| Power Requirement | 500 W |
| User Interface | Touchscreen HMI with user-defined depth input and real-time tool position display |
| Precision | Advanced EDM technology ensures high-precision machining for intricate shapes and tight tolerances |
| Portability | Compact, lightweight design enables easy transportation and quick setup for machining operations virtually anywhere |
Compliance & Certifications
Built To Meet Regulatory And Quality Standards
Meets CFR 21 Part 11 Requirements For Electronic Records And Audit Trails
Ensures Data Integrity For Pharmaceutical R&D, Regulated Labs, And Quality-Controlled Production
Time-Stamps And Logs Every Parameter, Error Event, And Status Change
Complete Audit Trails Extractable For Regulatory Submission
